- NVIDIA Blackwell Architecture : Next-generation Blackwell GPU architecture delivers advanced AI acceleration, ultra-fast gaming performance, and enhanced creator workflows.
- 12GB GDDR7 Graphics Memory : High-speed GDDR7 VRAM with 192-bit memory interface provides massive bandwidth for modern AAA gaming, ray tracing, and AI workloads.
- DLSS 4 AI Upscaling : NVIDIA DLSS 4 uses fifth-generation Tensor Cores and AI neural rendering to boost FPS, reduce latency, and improve visual fidelity.

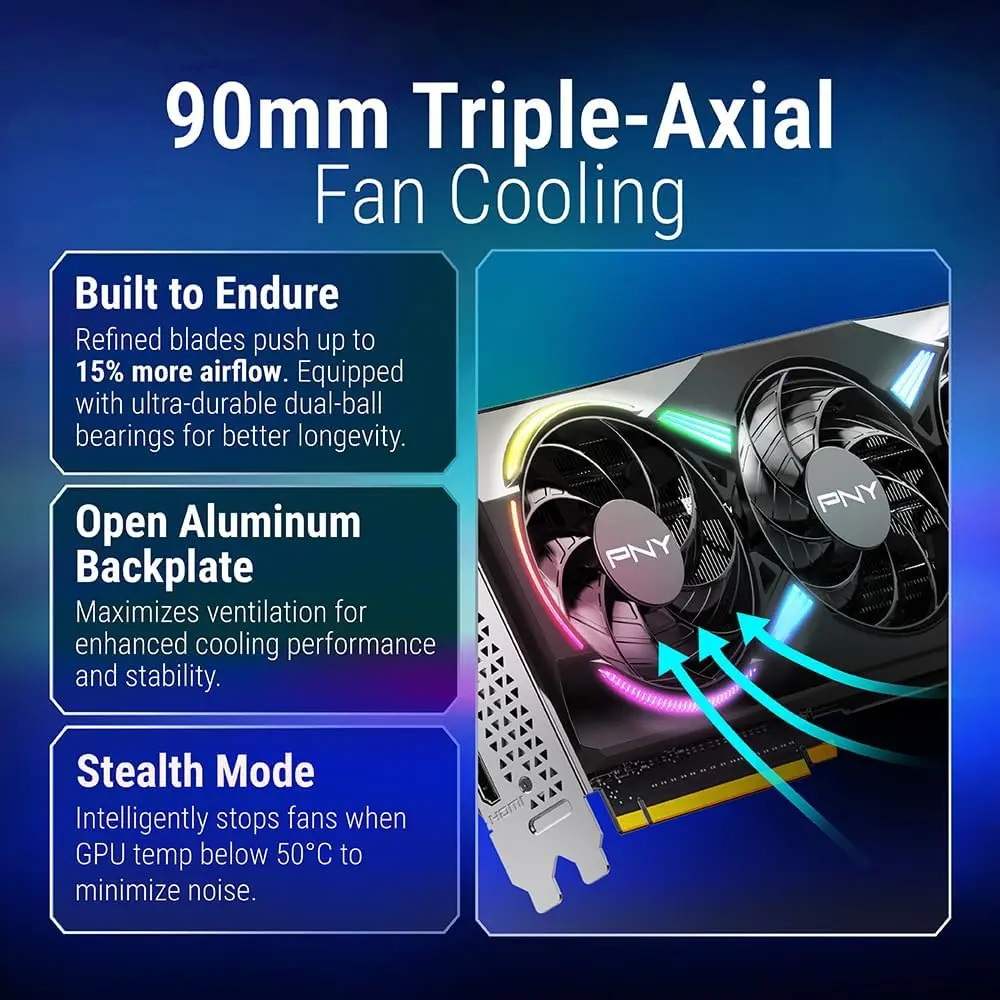

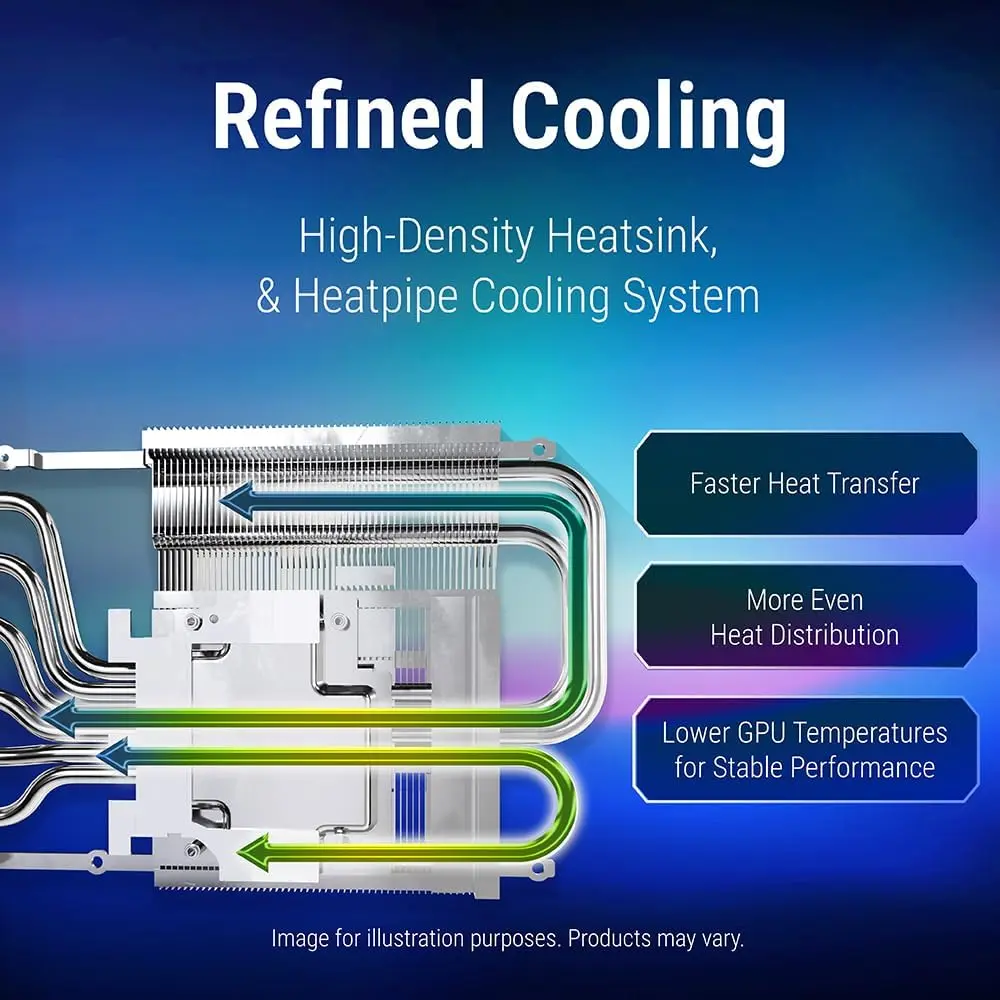

- Triple Fan Cooling System : Three high-performance cooling fans distribute heat efficiently across the heatsink for stable thermal performance under heavy gaming loads.

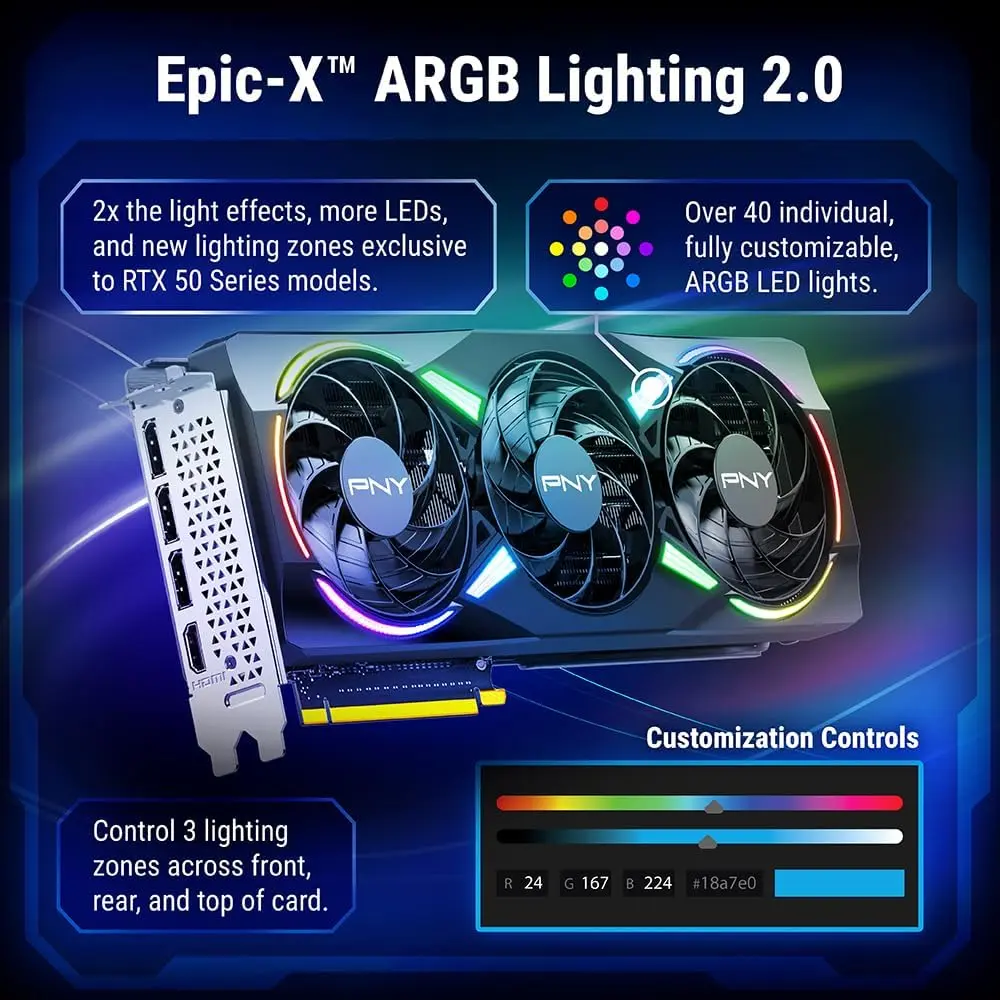

- Epic-X ARGB Lighting : Integrated ARGB illumination adds customizable RGB aesthetics compatible with VelocityX™ lighting controls.
- 2685 MHz Factory Overclock : Overclocked boost clock enhances gaming responsiveness and GPU throughput straight out of the box.
- PCIe 5.0 x16 Connectivity : PCI Express Gen 5 interface enables ultra-high bandwidth communication with next-generation gaming platforms.
- DisplayPort 2.1b + HDMI 2.1b Outputs : Supports ultra-high refresh gaming up to 4K 480Hz or 8K 165Hz with DSC compatibility.
- Metal Reinforced Backplate : Structural metal backplate improves rigidity, reduces GPU sag, and assists passive airflow ventilation.

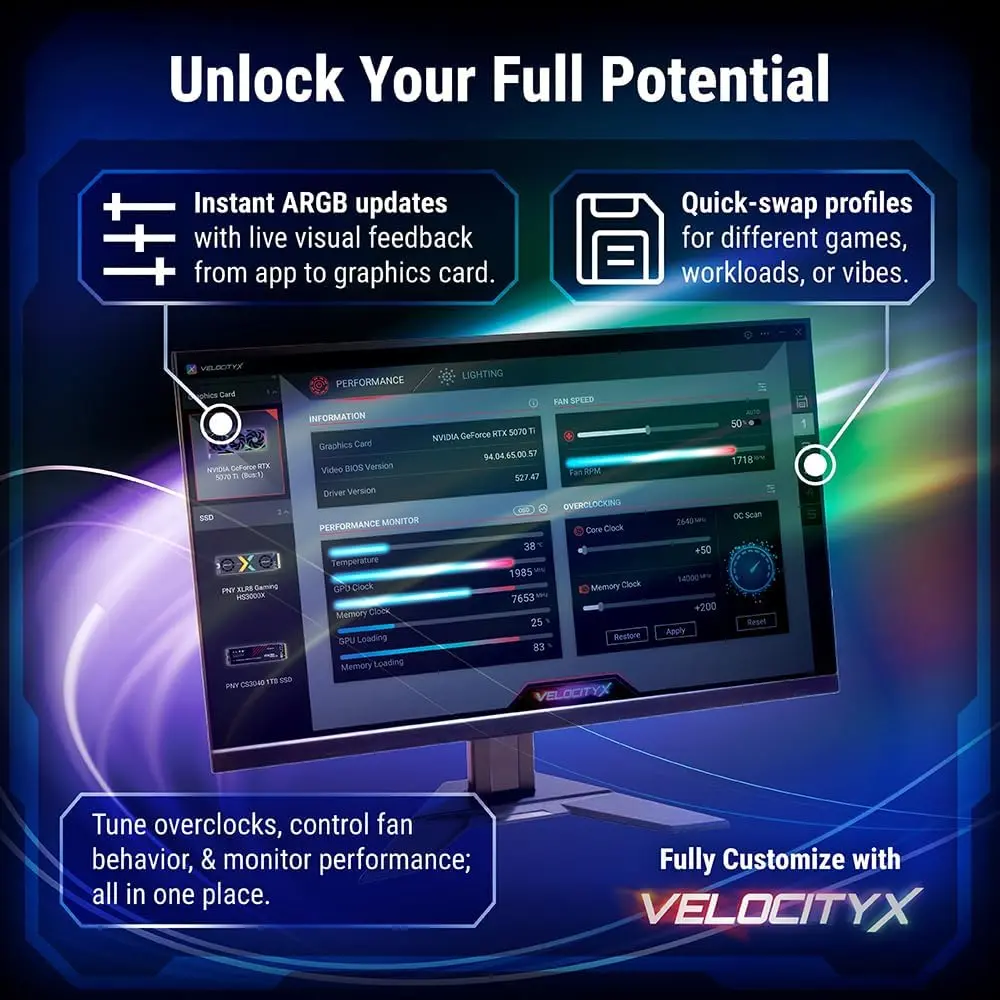

- VelocityX™ GPU Control Software : PNY tuning software provides control over GPU performance tuning, monitoring, and ARGB lighting customization.
| Specification | Value |
|---|---|
| Brand | PNY |

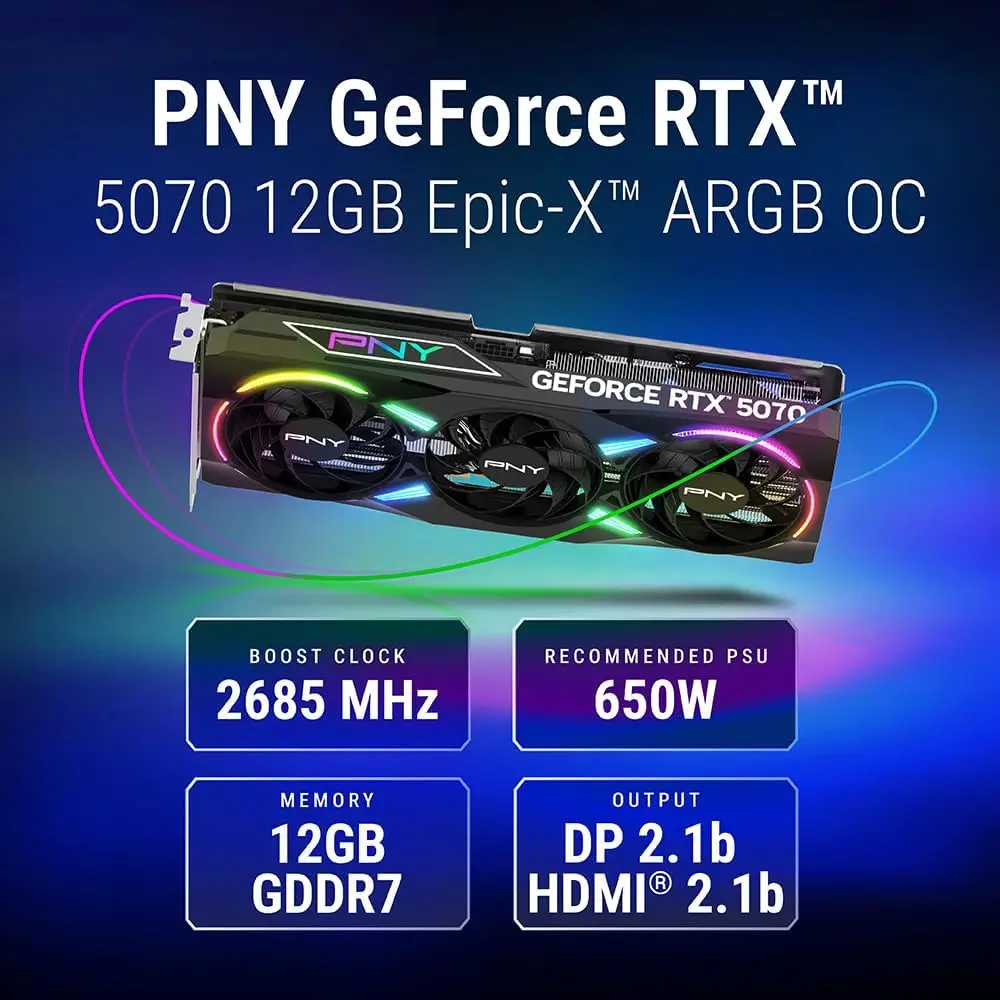

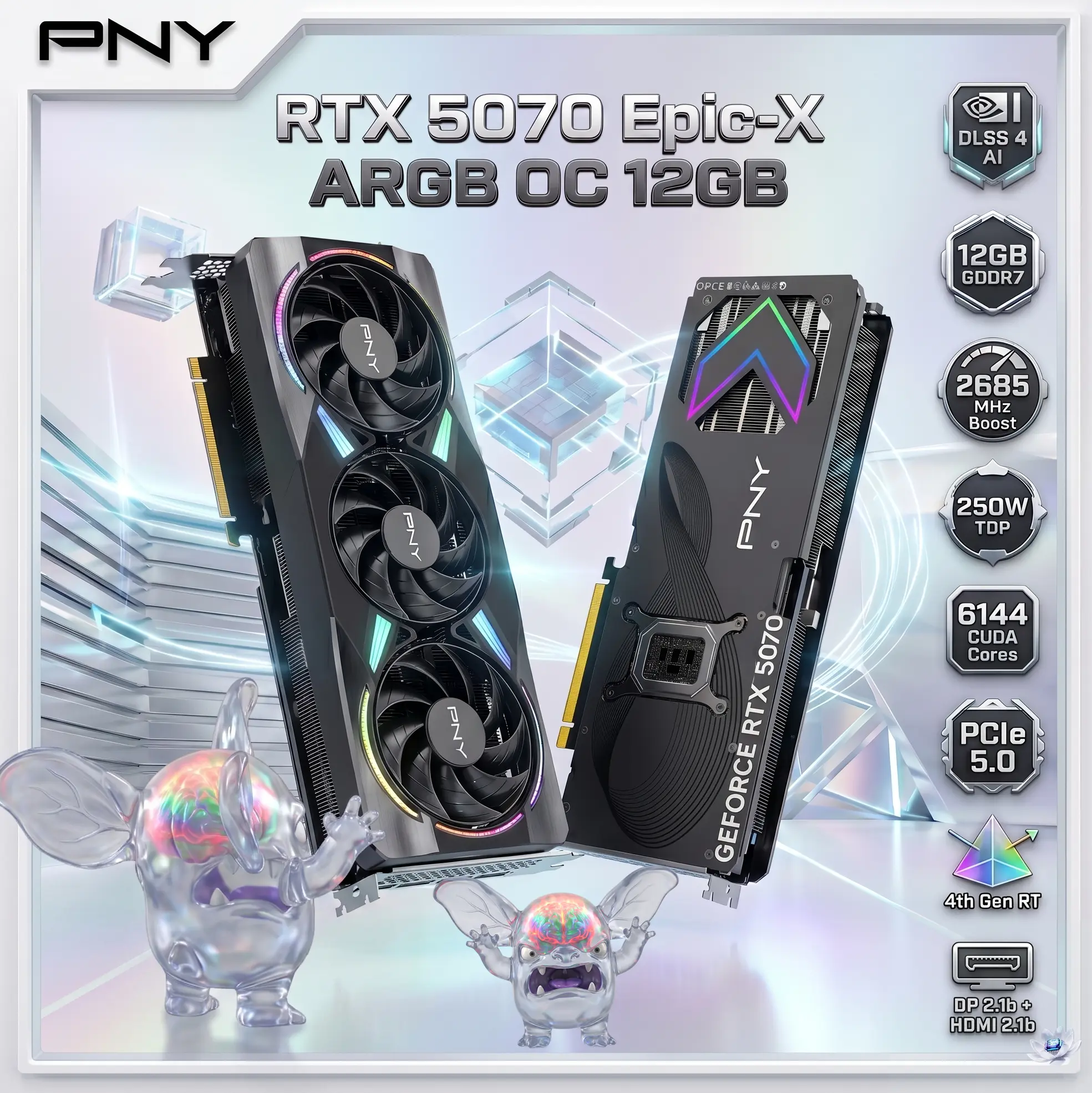

| Product Name | PNY GeForce RTX™ 5070 Epic-X™ ARGB OC Triple Fan |
| Model Number | VCG507012TFXXPB1-O |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 6144 |
| Tensor Cores | Fifth-Generation Tensor Cores |
| Ray Tracing Cores | Fourth-Generation Ray Tracing Cores |
| Graphics Memory | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 672 GB/s |
| Base Clock Speed | 2325 MHz |
| Boost Clock Speed | 2685 MHz |
| TDP | 250W |
| Bus Interface | PCI-Express 5.0 x16 |
| Cooling Design | Triple Fan Cooling |
| Lighting | Epic-X™ ARGB |
| Backplate | Metal Reinforced Backplate |
| Outputs | 3x DisplayPort 2.1b UHBR20, 1x HDMI 2.1b |
| Maximum Resolution | 4K at 480Hz / 8K at 165Hz with DSC |
| Multi-Display Support | Up To 4 Displays |
| Power Connector | 1×16-pin |
| Included Adapter | 1×16 to 2×8-pin Adapter Included |
| Recommended PSU | 650W Or Greater |
| Motherboard Requirement | PCI Express Gen 5 Compatible Motherboard |
| Slot Requirement | 2.4-slot x16 Graphics Slot |
| Supported Operating Systems | Windows 11 64-bit / Windows 10 64-bit / Linux 64-bit |
| NVIDIA Technologies | DLSS 4, Reflex 2, NVIDIA Broadcast, NVIDIA Studio |
| Software Support | NVIDIA App, VelocityX™ Software |
| Internet Requirement | Internet Connection Required |
| Card Dimensions | 11.80 × 4.73 × 1.9 Inches |
| Card Dimensions (Metric) | 382 × 194 × 72 mm |
| Slot Thickness | 2.4 Slot |
| Box Dimensions | 15.04 × 7.64 × 2.84 Inches |
| UPC Code | 751492794440 |
| Product Category | Desktop Gaming Graphics Card |
