 Features
- Next-Gen CPU Support:Â Compatible with AMD Ryzenâ„¢ 9000, 8000, and 7000 Series processors on Socket AM5.

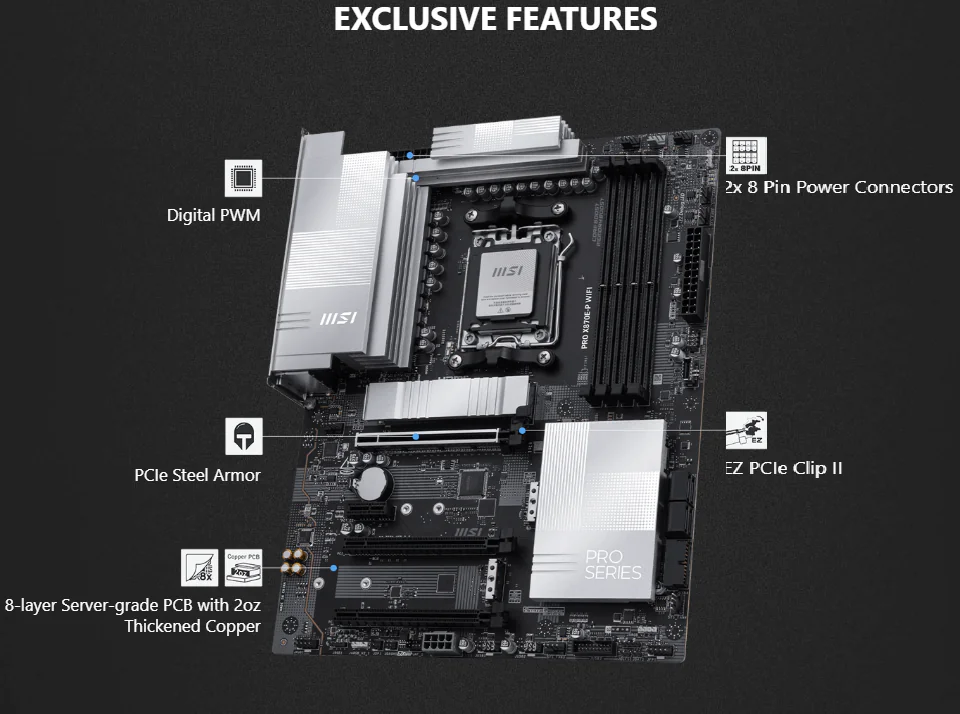

- Top-Tier Power Delivery: 14+2+1 Duet Rail Power System, Dual 8-pin CPU connectors, Core Boost, and 60A SPS—all built to handle high-end CPUs with ease.
- Pro-Level Memory Support:Â Up to 256GB DDR5, supports EXPO & A-XMP profiles, 8200+ MT/s OC speeds, and SMT welding for enhanced signal stability.
- AI-Powered System Tuning:Â MSI AI Engine, AI Boost, Frozr AI Cooling, and AI LAN Manager for smart performance and thermal optimization.

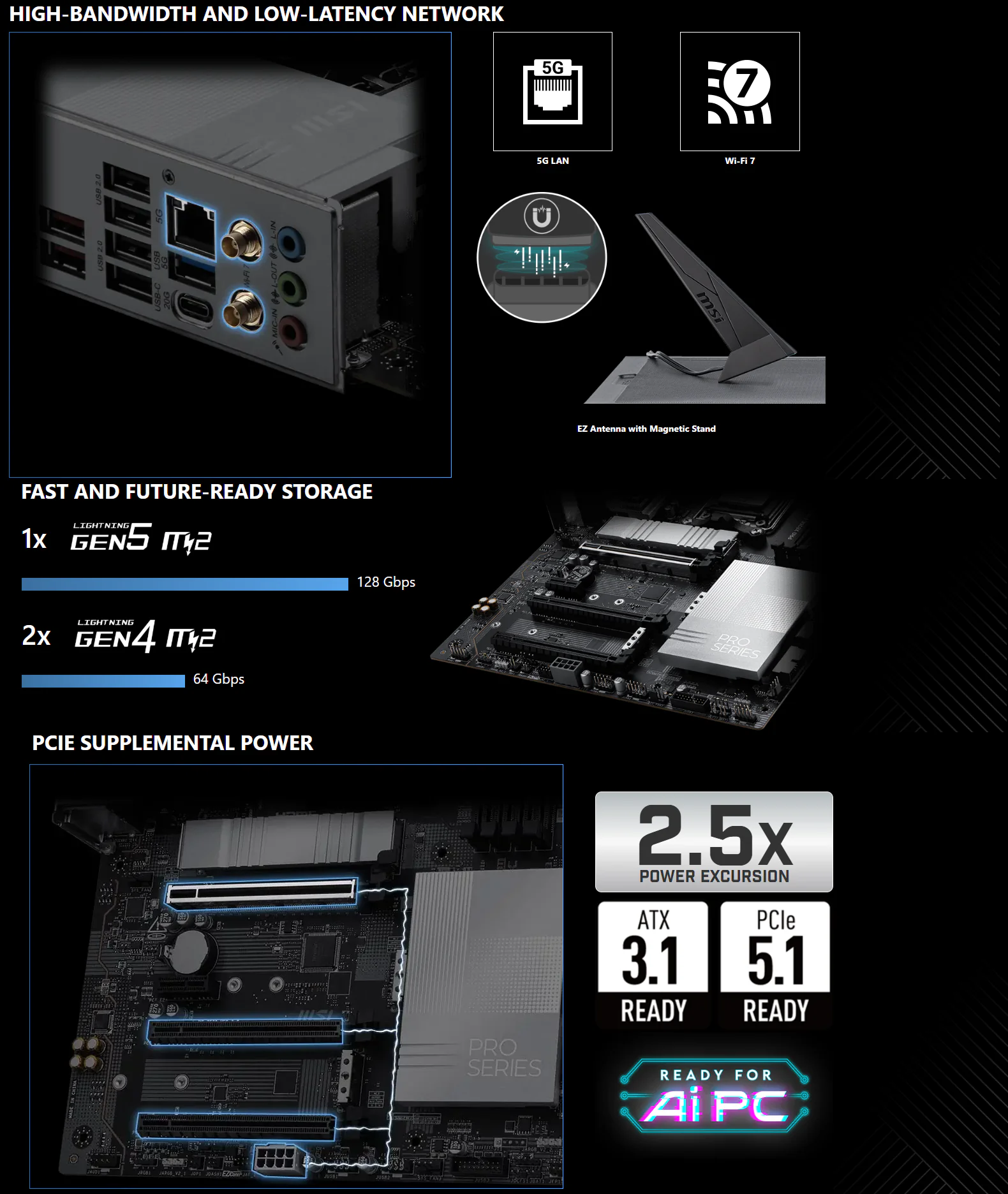

- Ultimate Connectivity: Realtek® 8126VB 5G LAN + Wi-Fi 7 with EZ Antenna, USB 4.0 (40Gbps), USB-C DisplayPort, and front/rear Type-C support.
- Lightning-Fast Storage:Â Triple M.2 with PCIe Gen 5/4 support, EZ M.2 Shield Frozr II, and SATA 6Gbps with RAID options.
- Premium Expansion:Â PCIe 5.0 x16 slot with Steel Armor for heavy GPUs, PCIe supplemental power for AI builds and gaming rigs.
- Build Like a Pro:Â EZ PCIe Clip II, EZ Antenna, EZ M.2 Clips, pre-installed I/O shield, colored headers, and EZ Debug LEDs.

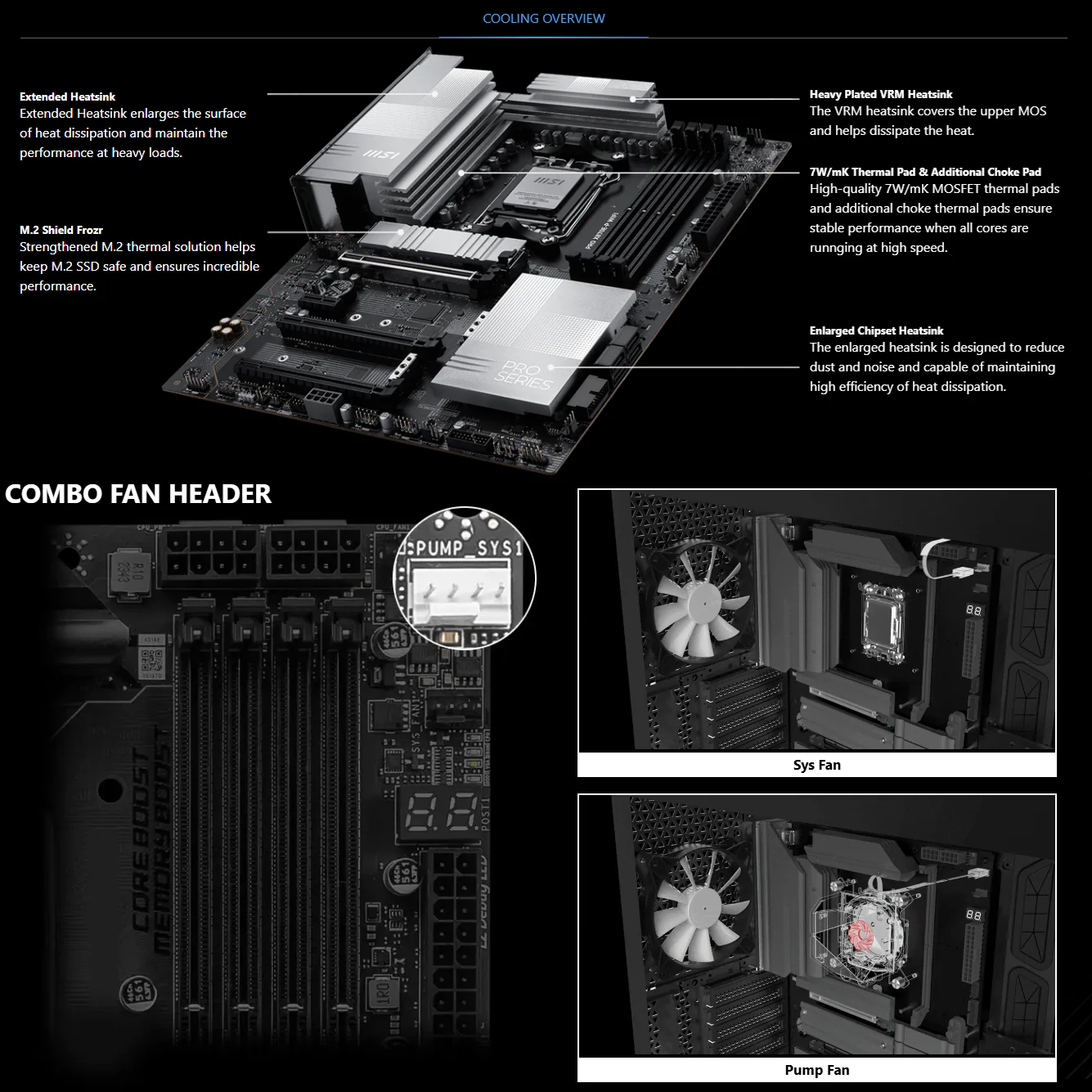

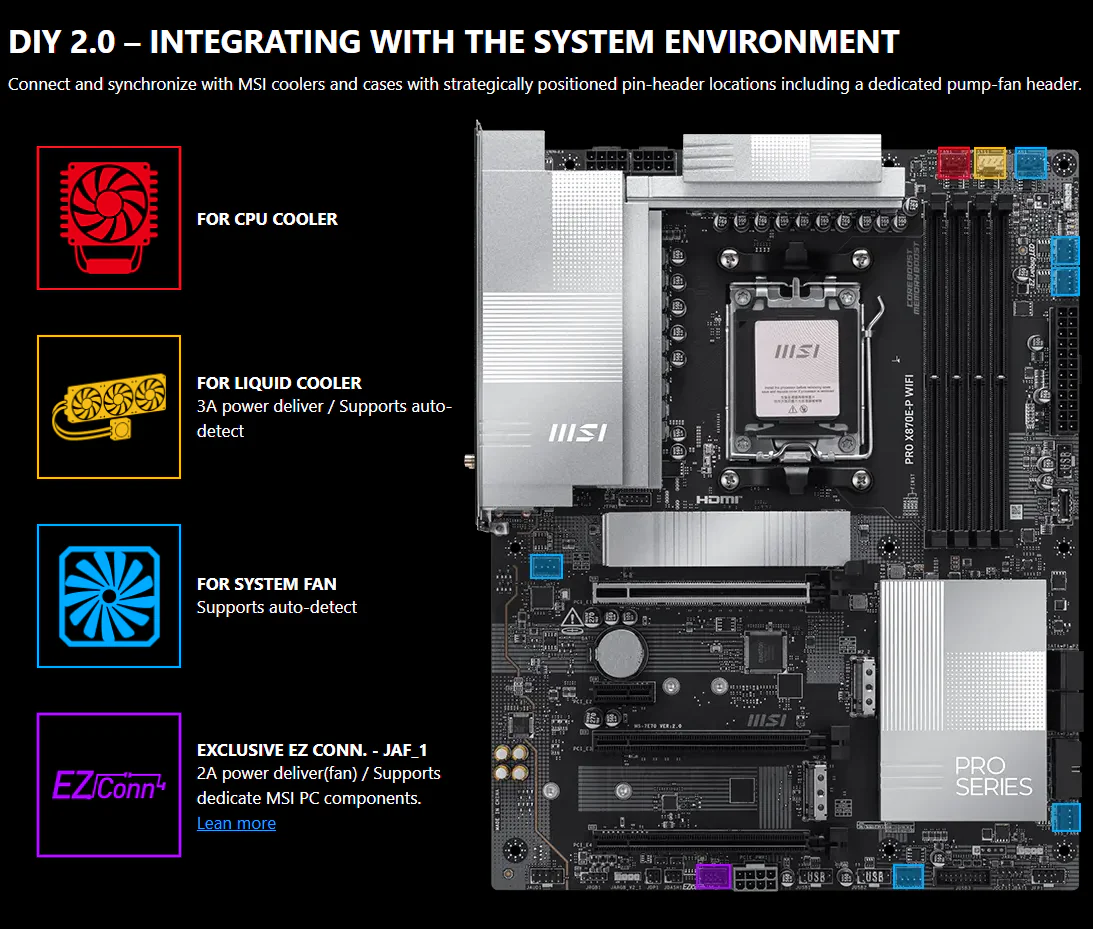

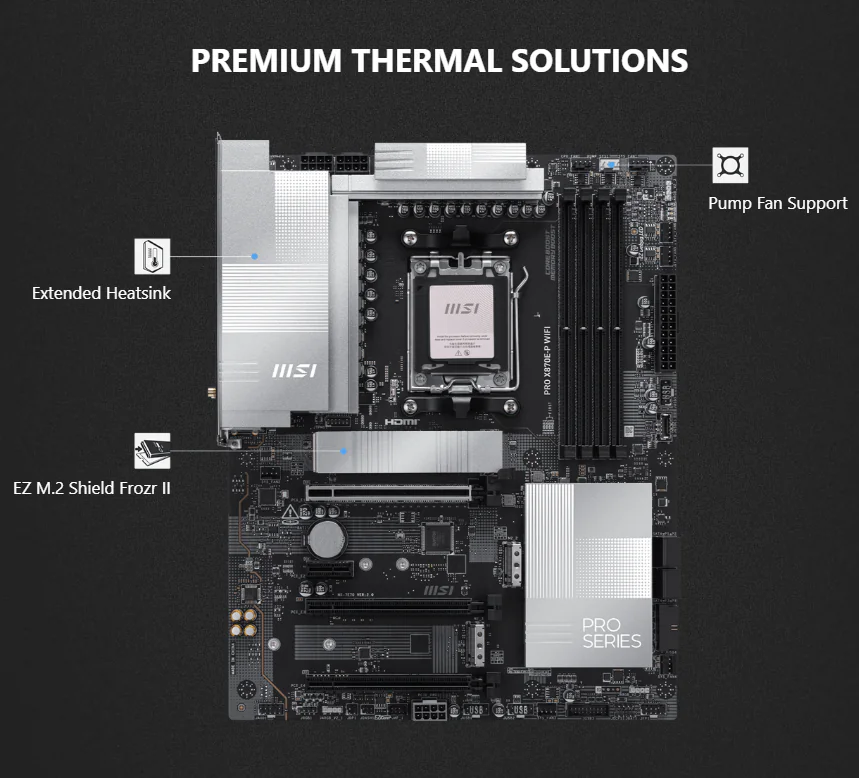

- Serious Cooling:Â Extended heatsinks, 7W/mK thermal pads, dedicated pump fan headers, and full DIY 2.0 sync with MSI ecosystem.
- Audio Boost Technology: Realtek® ALC897 with Isolated Analogy Structure ensures studio-grade 7.1-channel audio clarity.
- Visual Customization:Â Mystic Light RGB + Extension headers, full control via MSI Center software.
- Solid Durability:Â Anti-corrosive IO shield, solid pin power connectors, 8-layer PCB with 2oz copper, and Overcurrent Protection across major zones.
- Optimized BIOS & Software Suite:Â Click BIOS X, MSI Center, Norton 360 60-day trial, and AIDA64 Extreme integration.
📊 Specs
| Category | Details |
|---|---|
| Chipset | AMD X870E |
| CPU Socket | AM5 – Ryzen™ 9000 / 8000 / 7000 Series |
| Memory Support | 4x DDR5 UDIMM, 256GB Max, up to 8200+ MT/s (OC), Dual-Channel, EXPO/A-XMP, Non-ECC |
| Storage | 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0), 4x SATA 6Gb/s, RAID 0/1/10 for SATA, RAID 0/1/5 for M.2 NVMe (Ryzen 9000 only) |
| Expansion Slots | 3x PCI-E x16 (1x Gen 5.0 x16), 1x PCI-E x1 |
| USB Ports | 1x USB 4.0 Type-C (40Gbps), 1x USB 20Gbps Type-C, 2x USB 10Gbps, 6x USB 5Gbps, 10x USB 2.0 |
| Graphics Output | 1x HDMI 2.1, 1x USB-C DisplayPort (4K 60Hz, CPU-dependent) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio, Isolated Analogy Design |
| Networking | Realtek® 5G LAN, Wi-Fi 7 (6GHz/5.8Gbps), Bluetooth® 5.4 |
| Cooling Support | Extended VRM heatsinks, EZ M.2 Shield, Pump Fan Header, 6x System Fan, Combo Header, AI Cooling, Frozr Sync |
| Special Features | AI Boost, AI LAN Manager, EZ PCIe Clip II, Click BIOS X, MSI Center, Mystic Light, Anti-Corrosive I/O Shield, Overcurrent Protection |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Operating System | Windows® 11 64-bit |
